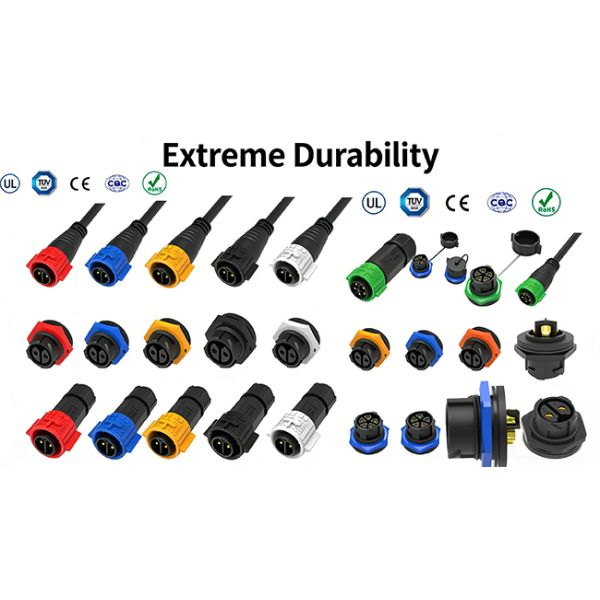

M16 4 Pin 300V Waterproof Power Connector Plastic Cable To Cable Connectors
Product Overview
4 Pin LED Waterproof Connector, M16 10A PA66 Push Locking Wire To Wire Connectors
Engineered exclusively for LED lighting systems, this M16 4-pin waterproof connector features a 10A rated current for stable power transmission. Its shell is crafted from high-strength PA66 engineering plastic, delivering exceptional mechanical toughness and corrosion resistance. Equipped with a user-friendly push-locking mechanism, it enables secure, tool-free wire-to-wire connections. Boasting superior waterproof and moisture-proof performance, the connector thrives in outdoor, humid, and complex industrial environments, offering reliable circuit connectivity for LED street lights, landscape lighting, and LED displays. It also minimizes overall installation and maintenance expenses for lighting projects.
Key Features
- Push lock quick release system for hassle-free operation
- Multiple configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
- Field assembly versions: wire to wire / wire to board
- High current rated waterproof connector suitable for up to 10A continuous operation
- Cable assembly service supported with customization options
- OEM/ODM services welcome
Electrical Specifications
| Parameter |
Specification |
| Number of Poles |
4Pin waterproof connector |
| Current Rating |
10A max |
| Voltage Rating |
300VAC max |
| Durability Voltage |
1500VAC @ 60 s |
Technical Specifications
| Parameter |
Specification |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Application Industries
- Communications Equipment
- Product Coding Machines
- Inventory Product Coding
- Inkjet Systems
- Solar Systems
- Industrial Inkjet Equipment
- Electric Power Equipment
- Laboratory Forensic & Pathology Equipment
- Communications Equipment
- Heavy Machinery
Product Dimensions
Technical Details
Frequently Asked Questions
Can I get a free sample before placing a bulk order?
We offer free samples for standard models, but the shipping cost is at your expense. For customized samples, a small fee will apply and can be deducted from the formal order later.
Do you support product customization?
Yes, customization is available for specifications, colors and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
How can I get samples?
It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.
